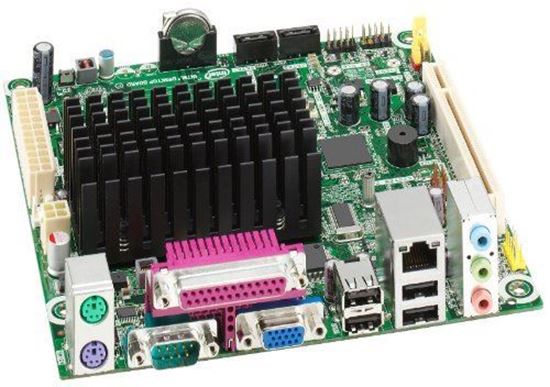

intel D425KTE Mini ITX Desktop Motherboard

Intel BLKD425KTE / D425KTE Chipset-NM10 Express Socket-BGA 4Gb DDR3-1066MHz Mini-ITX Desktop Motherboard

Manufacturer: Intel

Manufacturer part number: D425KTE

Call for pricing

Qty:

Specifications
Model Number	BLKD425KTE
Brand	Intel
Condition	New Bulk Board With Accessories
Alt. Part Number(s)	D425KTE
Type	Motherboard

Technical Description
Brand	Intel
Model	BLKD425KTE / D425KTE
Form Factor	Mini-ITX
Socket	BGA
Embedded Options Available	No
Board Chipset	Intel® NM10 Express Chipset (Intel® CG82NM10 PCH)
Max Memory Size	4Gb (dependent on memory type)
Memory Types	DDR3-1066/800
Memory Channels	1
Total DIMMs	2
ECC Memory Supported	No
Integrated Graphics	Yes
Graphics Output	VGA
Discrete Graphics	None
PCI Support	1
USB Ports	8
USB 2.0 Configuration	4, 4 (Back + Internal)
Total SATA Ports	2
RAID Configuration	N/A
Total Parallel Ports	1
Total Serial Ports	2
Audio Ports	2, 2 (back channel + front channel)
Integrated LAN	Realtek 10/100
Firewire	0, 0
Total PS2 Port	2
Max CPU Configuration	1
Low Halogen Options	See MDDS
